X10 V8.0 Digital Metal Gear Servo 10.8kg.cm 0.10sec for RC Gliders

Regular price$44.99
/

  • Free shipping in standard shipping way when order over $100.
  • For non-pre-sale products, KST Servos processes orders within 5 working days of placement.
  • In the case of out-of-stock items, we will inform you via email as soon as the lead time is determined.

The newest wing servo from KST offers the best performance and definitely the best value servo you can put in your latest sailplane wing. This HV servo has incredible torque and extremely smooth operations rivaling and beating servos twice it's price.

Perfect for applications like F3J, F3B, F3F wing and flap installations. You need to see it and feel how smooth it goes... it's just awesome.

X10&X10MINI Servo

Features

  • Compact and Lightweight Design
  • Extreme Torque and Excellent Speed
  • Excellent Heat Dissipation
  • Programmable
  • CNC Aluminum Case

Specification

  • Item: X10 V8.0 Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC4.8V-8.4V
  • Torque: 6.2Kgf.cm@4.8V,  7.5Kgf.cm@6.0V, 9.5Kgf.cm@7.4V, 10.8Kgf.cm@8.4V
  • Speed: 0.16sec/60° @4.8V,  0.14sec/60° @6.0V, 0.12sec/60°@7.4V,  0.10sec/60°@8.4V
  • Working Frequency: 1520µs/333Hz
  • Travel Angle: ±50°=100° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Lead length: 15cm
  • Bearing: 2BB
  • Gear Set Material: Hardened Steel
  • Motor Type: Coreless DC Motor
  • Position Sensor: Potentiometer
  • Case Dimensions: 30*10*35.5mm ±0.2mm
  • Weight: 28g±10%

Related Products

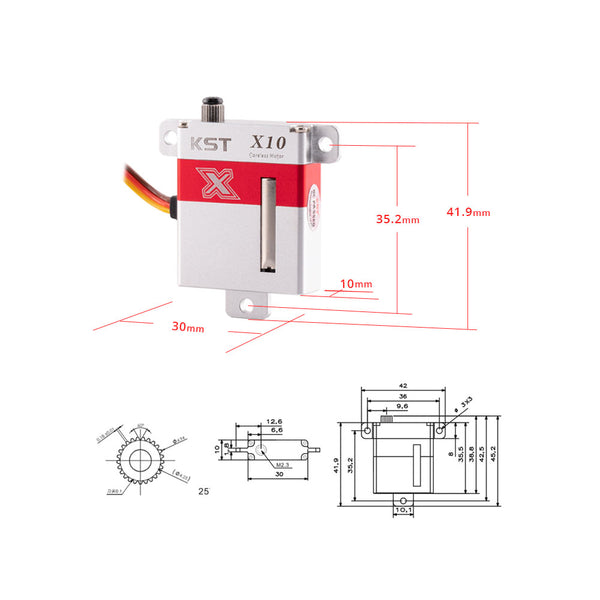

    Size

    X10 V8.0 Size

    Package Including

    • 1 * X10 V8.0 Servo
    • 5 * Plastic Servo Horn
    • 1 * Servo Horn Screw
    • 3 * Mounting Screw
    X10 Package
