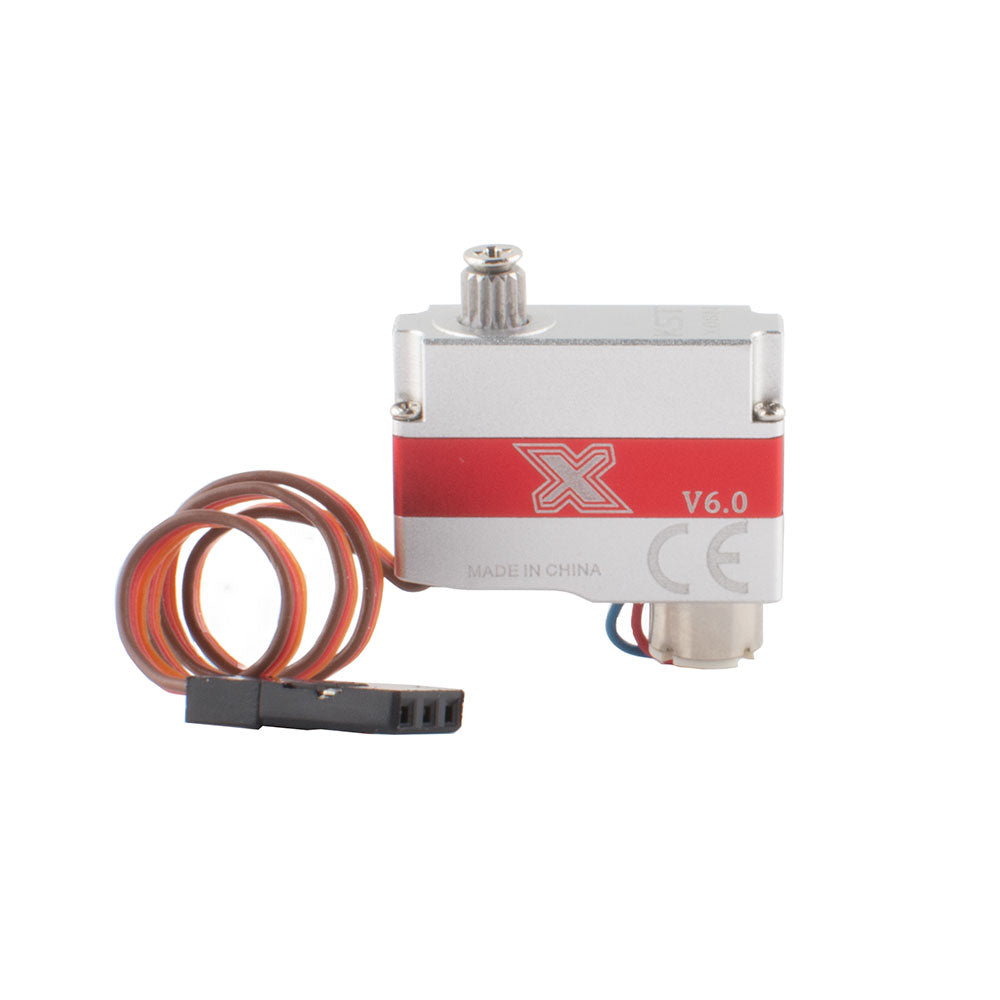

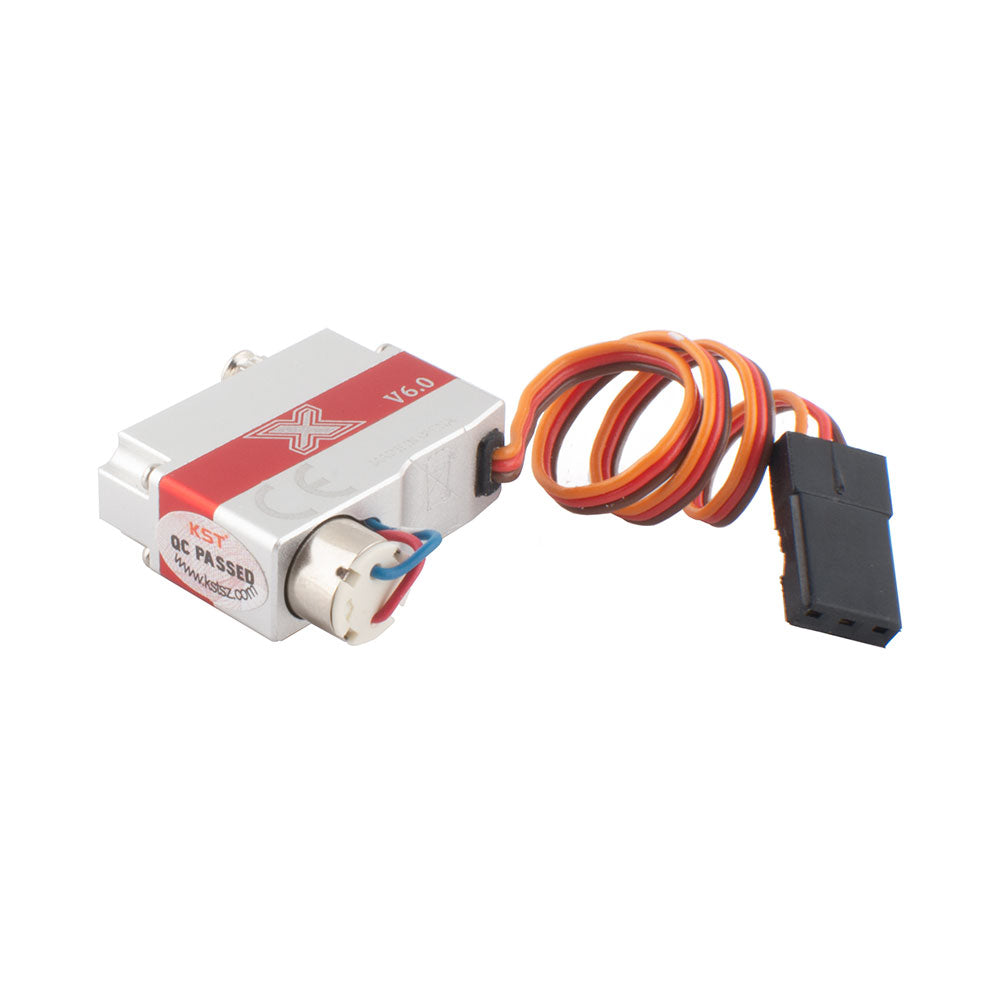

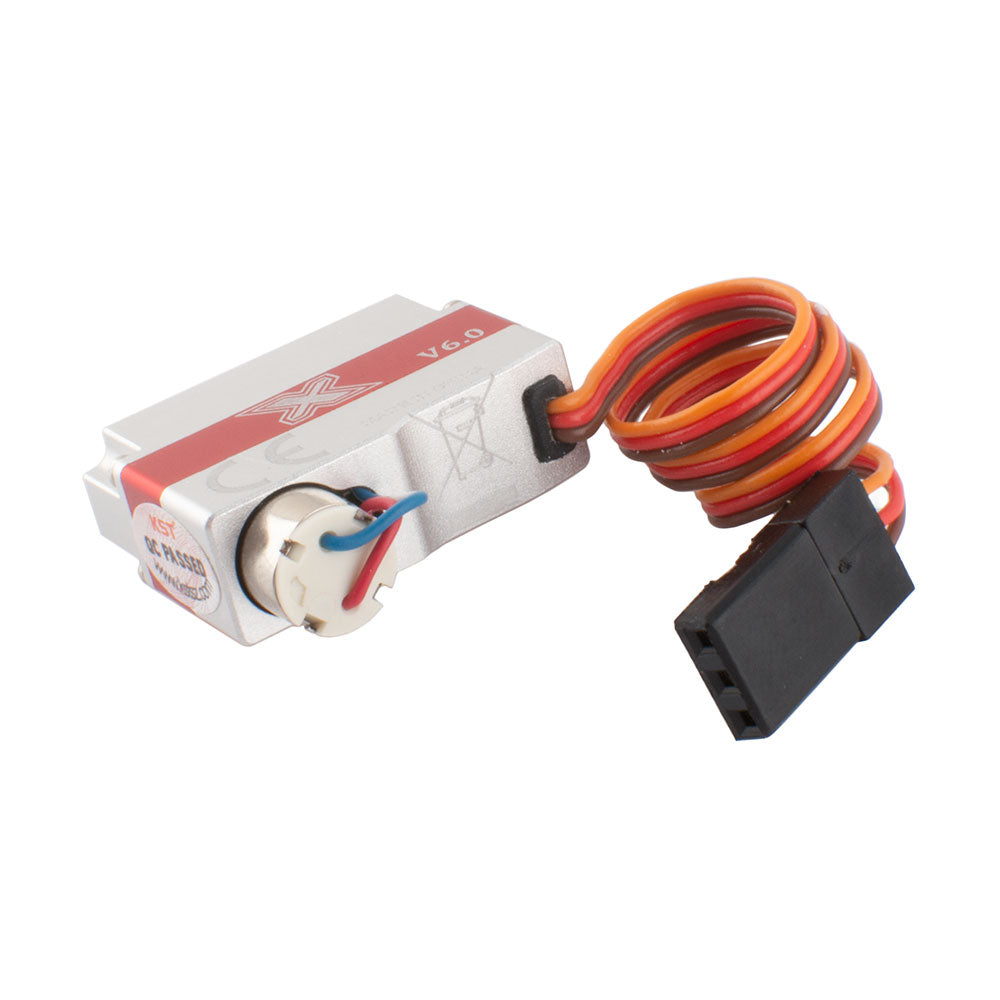

X08N V6.0 Metal Gear Digital Micro Servo 2.8Kgf.cm 0.09sec for RC Gliders

Regular price$41.99
/

  • Free shipping in standard shipping way when order over $100.
  • For non-pre-sale products, KST Servos processes orders within 5 working days of placement.
  • In the case of out-of-stock items, we will inform you via email as soon as the lead time is determined.

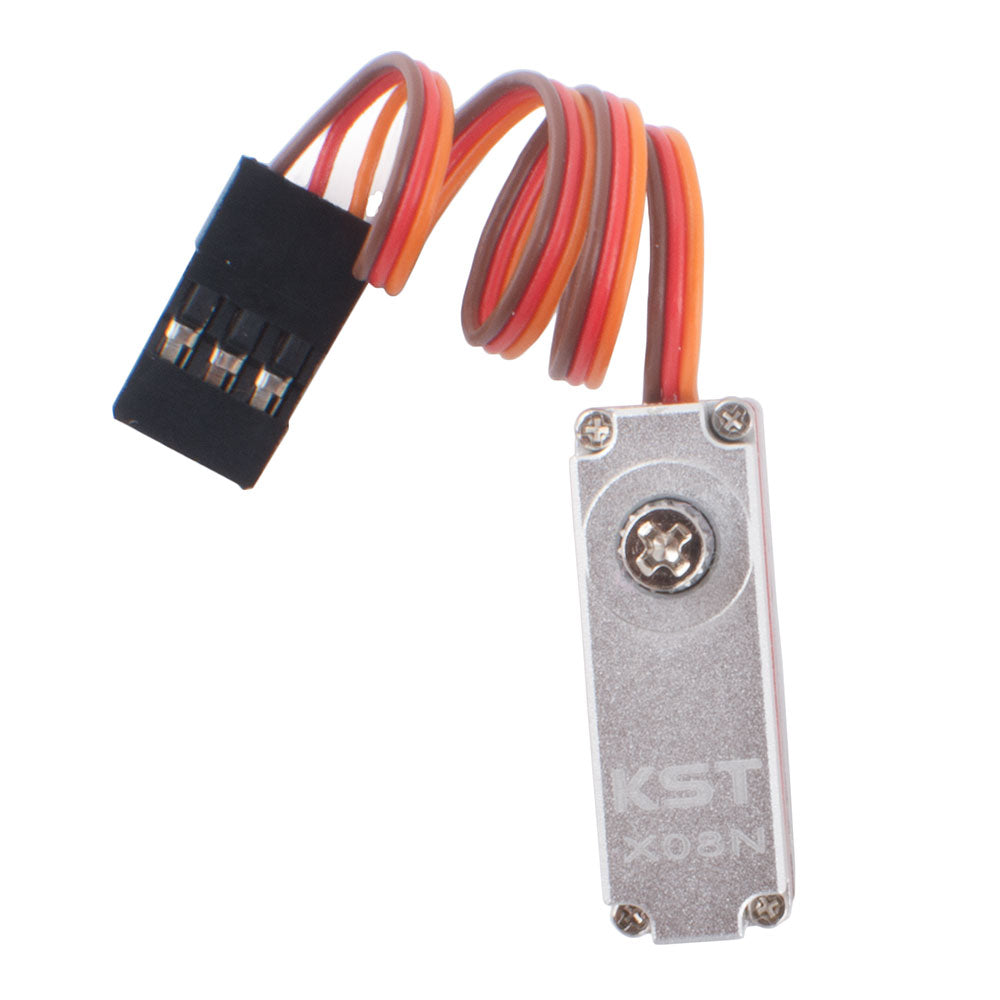

This is the N or tabless version of the X08 V6.0 Servo. The tabless version allows you to install the servo in tight spaces directly with glue, without having the cut the tabs off yourself. Especially useful in fuselages where space is at a premium.

The KST X08 series servos have been the defact DLG servo for the past several years, delivering robust and precise performance at a very attractive price. V6 takes it another step forward by not only further improving the gearset to minimize potential slop, but the servos are now programmable with the KST Tool Card #5 (sold separately) to adjust the endpoints, center, and direction for the perfect installations.

KST's continual strive for performance has resulted in the KST X08, with 1us resolution and deadband, the X08 series servos are the most precise servos made by the company. At an incredible 8 mm thickness and very small overall dimensions, this servo will fit in any tight space you want.

To meet the demands of DLG pilots, the KST X08 series servos are designed from the ground up to be 1s and 2s LiPo compatible, making it possible for the pilot to choose any number of battery configurations to suit personal preference.

X08/X08H/X08N Servo

Features

  • Compact and lightweight design
  • Excellent torque and speed
  • Designed for high-performance RC Gliders
  • Excellent heat dissipation
  • Programmable
  • Support soft start

Specification

  • Item: X08N V6.0 Micro Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC3.8V-8.4V
  • Torque: 1.4kg.cm@3.8V, 2.2kg.cm@6.0V, 2.8kg.cm@8.4V
  • Speed: 0.18sec/60°@3.8V, 0.15sec/60°@6.0V, 0.09sec/60°@8.4V
  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±60° = 120° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Yes
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Case Dimensions: 23.5*8*16.8mm±0.2mm
  • Weight: 8g±10%
