Regular price$64.99
/

  • Free shipping in standard shipping way when order over $100.
  • For non-pre-sale products, KST Servos processes orders within 5 working days of placement.
  • In the case of out-of-stock items, we will inform you via email as soon as the lead time is determined.

DS1509MG low profile digital Servo, featured with 12.8Kgf.cm high torque and 0.07sec fast positioning speed. It is a great choice of steering servo for RC cars and aircraft models. It offers a wide voltage range of 4.8 - 7.4 Volt and is therefore universally applicable due to the low profile construction.

DS1509MG Servo

Features

  • Extreme Torque and Excellent Speed
  • CNC Aluminium Case
  • Two Ball Bearings
  • Low Profile Size
  • Programmable

Specification

  • Item: DS1509MG Coreless Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC4.8V-7.4V
  • Stalling Torque:

8.5Kgf.cm@4.8V
10.7Kgf.cm@6.0V
12.8Kgf.cm@7.4V

  • No-load Speed:

0.10sec/60°@4.8V
0.08sec/60°@6.0V
0.07sec/60°@7.4V

  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±50°=100° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB
  • Case Dimensions: 40.5mm*20mm*26.5mm±0.2mm
  • Weight: 55g±10%
  • Accessories: Metal Gear Set, 25T-6B Aluminum Servo Arm

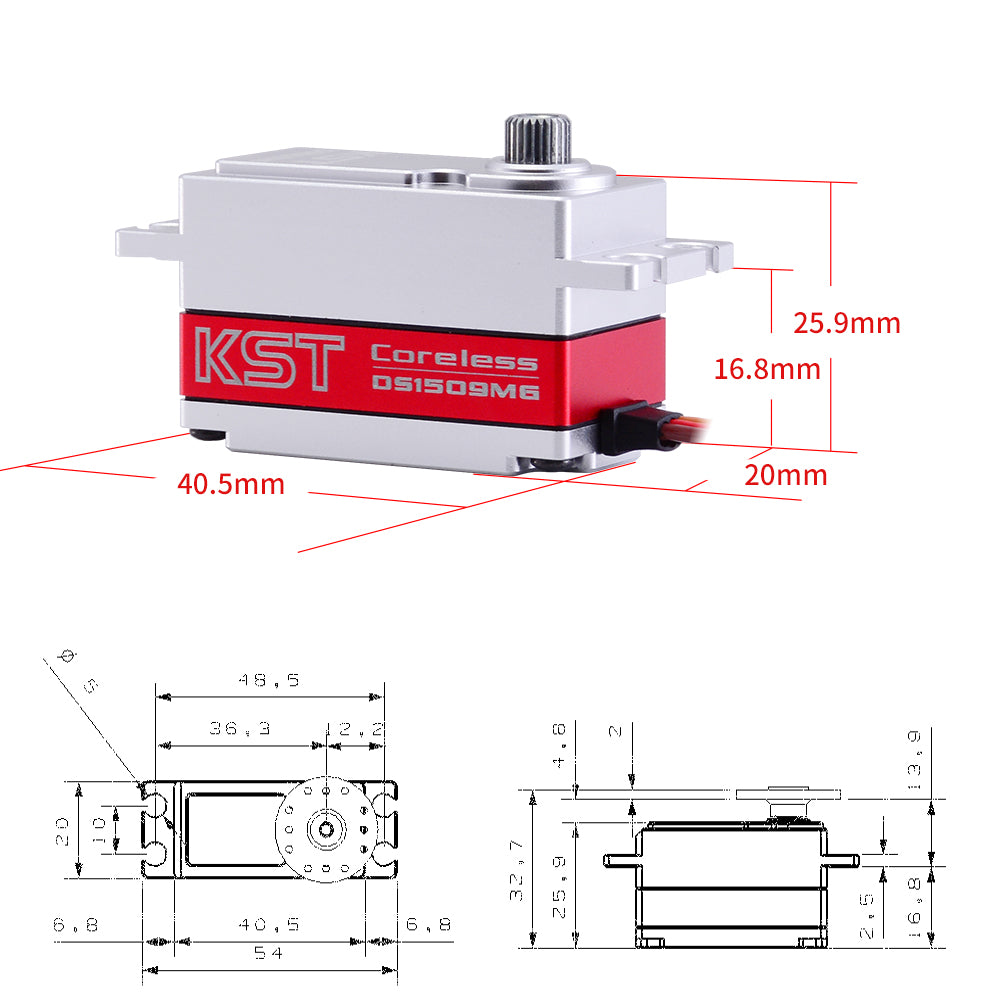

    Size

    DS1509MG Metal Gear Coreless Digital Servo

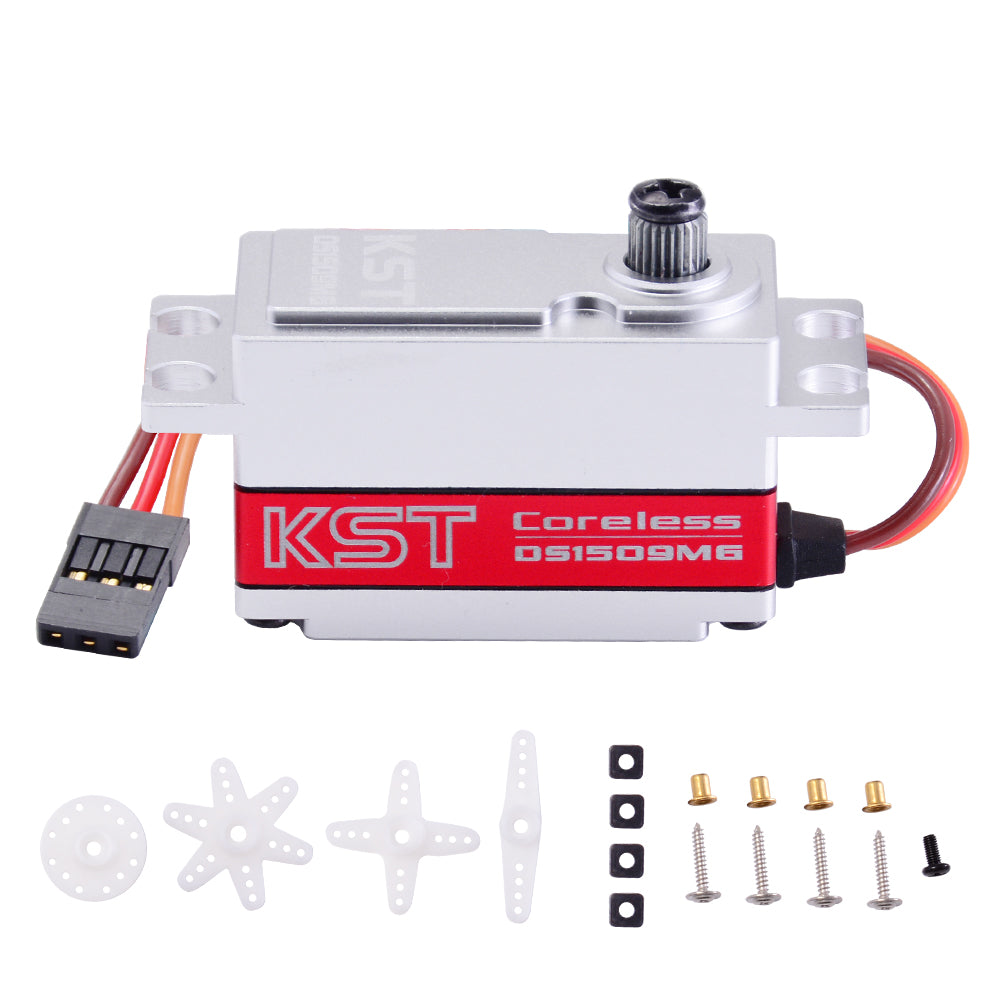

    Package Including

    • 1 * DS1509MG Coreless Digital Servo
    • 1 * Pack of Accessories

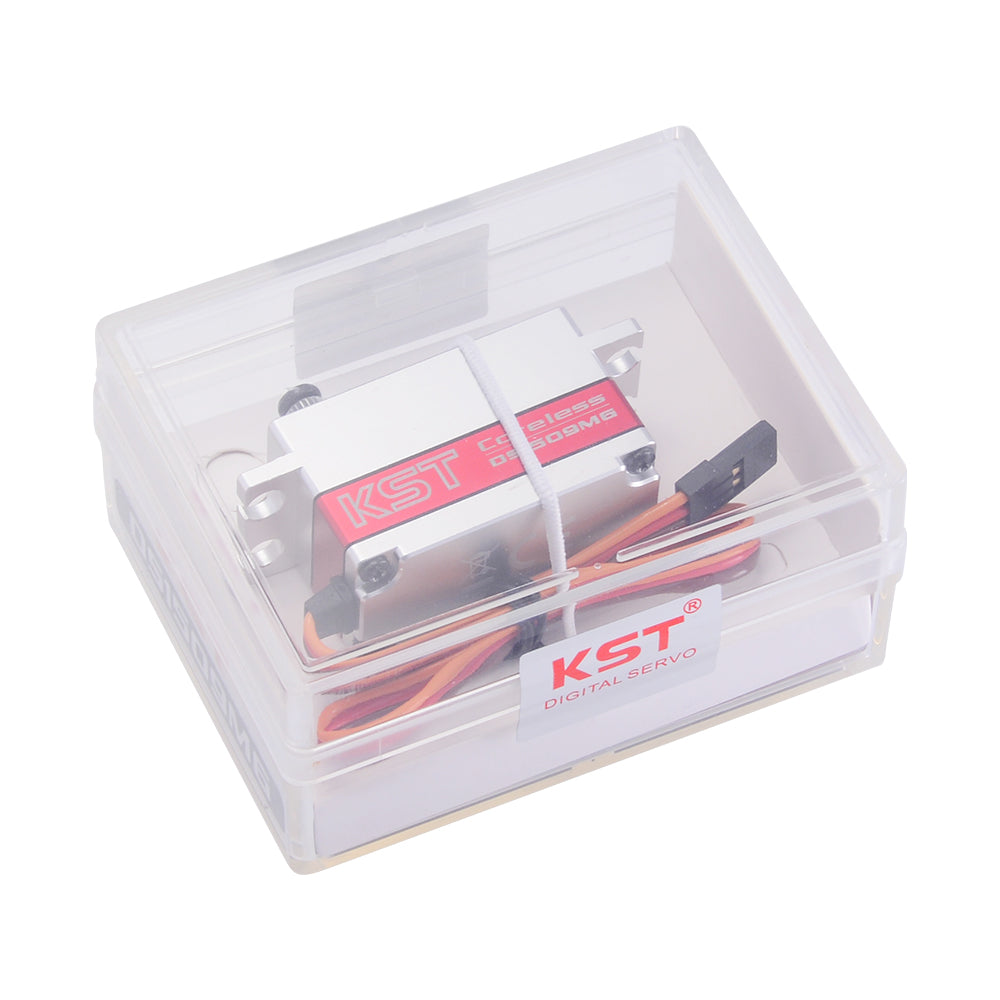

    DS1509MG Servo Package
