Name: [Pre-order] CM712 Mini HV Coreless Digital Metal Gear Servo 8.00Kgf.cm 0.10sec for RC Planes & RC Helicopters
Brand: KST-Servo
SKU: BR0023.0263
Price: 34.99 USD
Availability: InStock

CM712 Mini HV Coreless Digital Metal Gear Servo 8.00Kgf.cm 0.10sec for RC Planes & RC Helicopters KST-Servo

$34.99

Quantity

Free standard shipping for orders over $100

For non-pre-sale products, KST Servos processes orders within 5 working days of placement.

In the case of out-of-stock items, we will inform you via email as soon as the lead time is determined.

The KST CM712 High-Voltage Digital Servo is engineered for RC pilots, racers, and builders who require fast response, stable holding power, and long-term durability in a compact and lightweight package. Designed for modern high-performance RC applications, the CM712 delivers precise control and consistent output for RC Planes & RC Helicopters.

Powered by a high-efficiency coreless motor, the CM712 offers smoother acceleration, faster response, and improved centering accuracy compared to conventional brushed servos.Operating at 8.40V, it delivers a powerful torque of 8.00 Kgf.cm and a rapid speed of 0.10sec/60° for near-instantaneous response. Combined with a durable full metal gear train and dual ball bearing (2BB) structure, this RC servo maintains stable performance under continuous load while minimizing gear wear over time.

KST CM712 Mini HV Coreless Digital Metal Gear Servo 8.0kg.cm for RC Planes and Helicopters

Features

Ultra High Torque & High-Speed Response
Dual Ball Bearings (2BB)
Coreless Motor
Support Soft Start
Programmable
Wide Voltage Range: DC 4.8V–8.4V
Ideal for RC Planes & RC Helicopters

Specification

Item: CM712 Servo
Rated Voltage: DC7.40V
Voltage Range: DC4.80V-8.40V
Torque: 5.00Kgf.cm@4.80V,6.00Kgf.cm@6.00V,7.00Kgf.cm@7.40V,8.00Kgf.cm@8.40V
Speed: 0.19sec/60°@4.80V,0.15sec/60°@6.00V,0.12sec/60°@7.40V,0.10sec/60°@8.40V
Stalling Current: 1.50A@4.80V,1.80A@6.00V,2.05A@7.40V,2.35A@8.40V
Working Frequency:1520us/333Hz

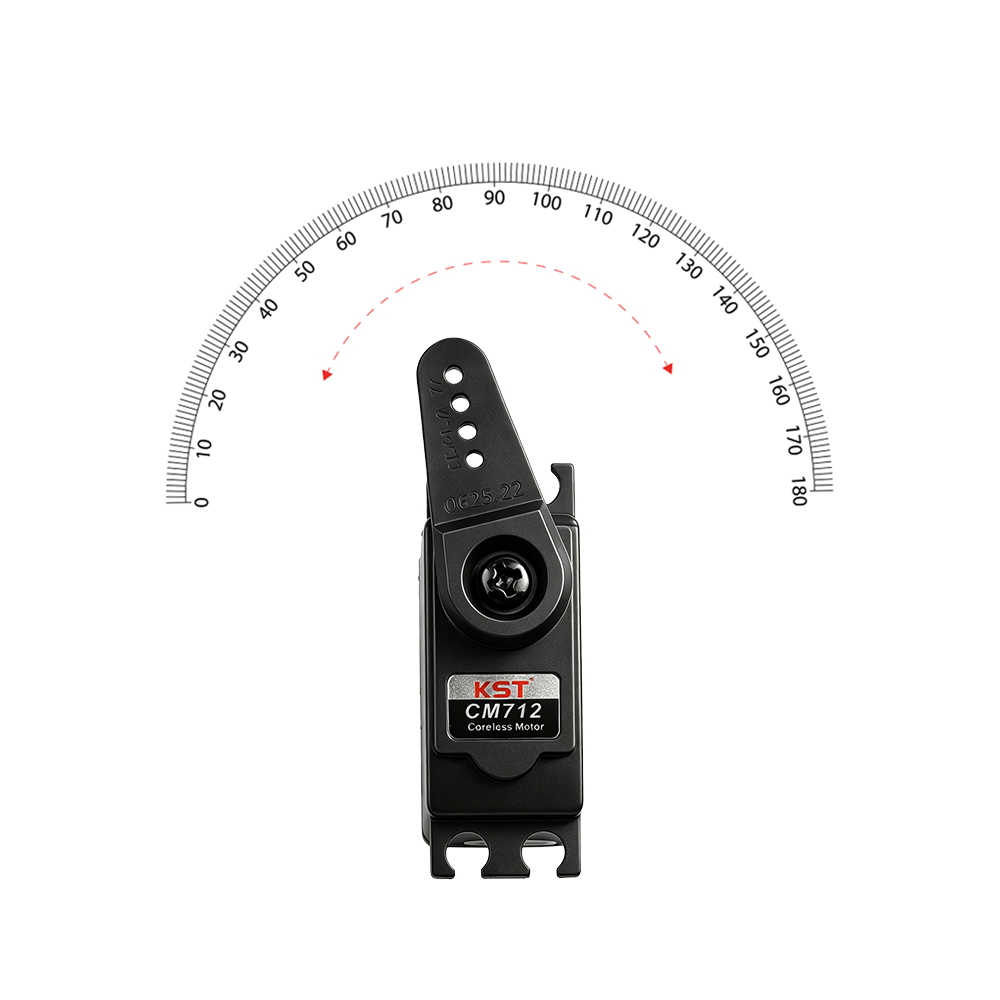

Default Travel Angle: ±50° =100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Motor Type: Coreless Motor
Case Material: Plastic
Gear Set: Material Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB

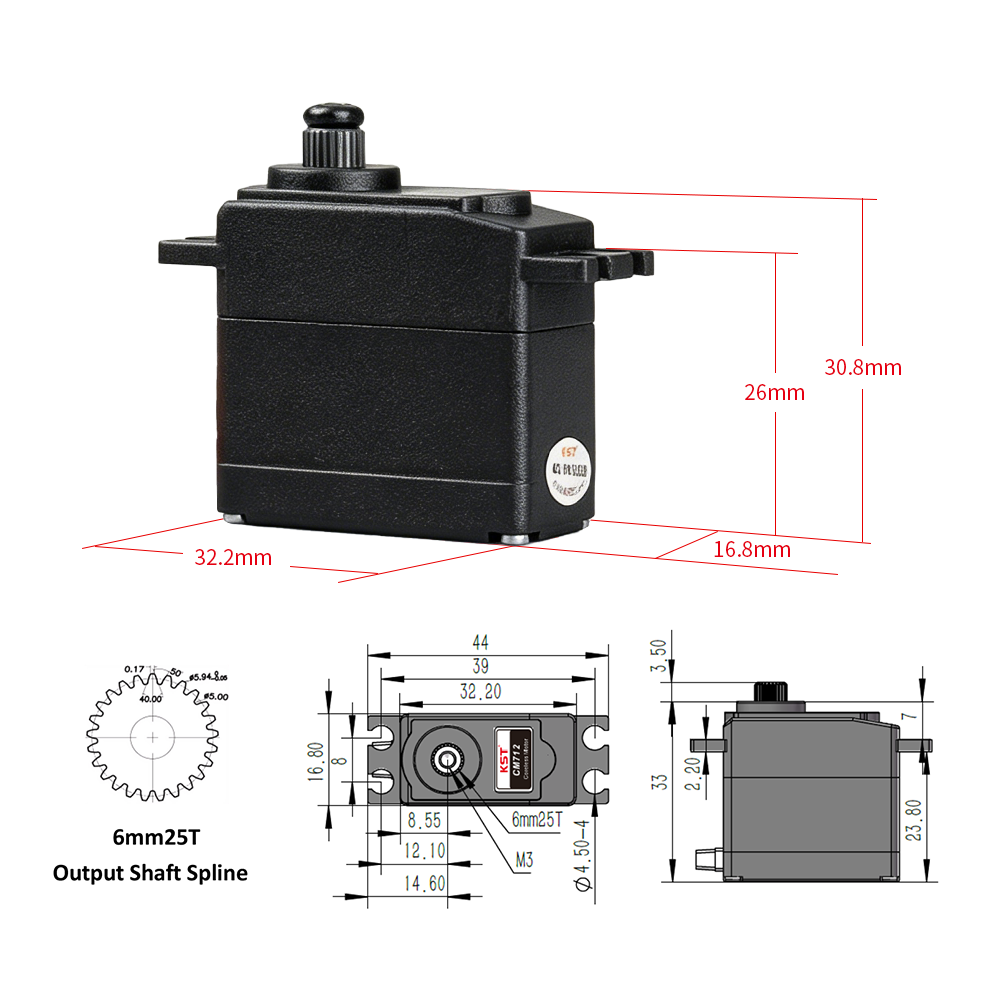

Case Dimensions: 32.2*16.8*33mm±0.2mm
Weight: 32g±10%

Size

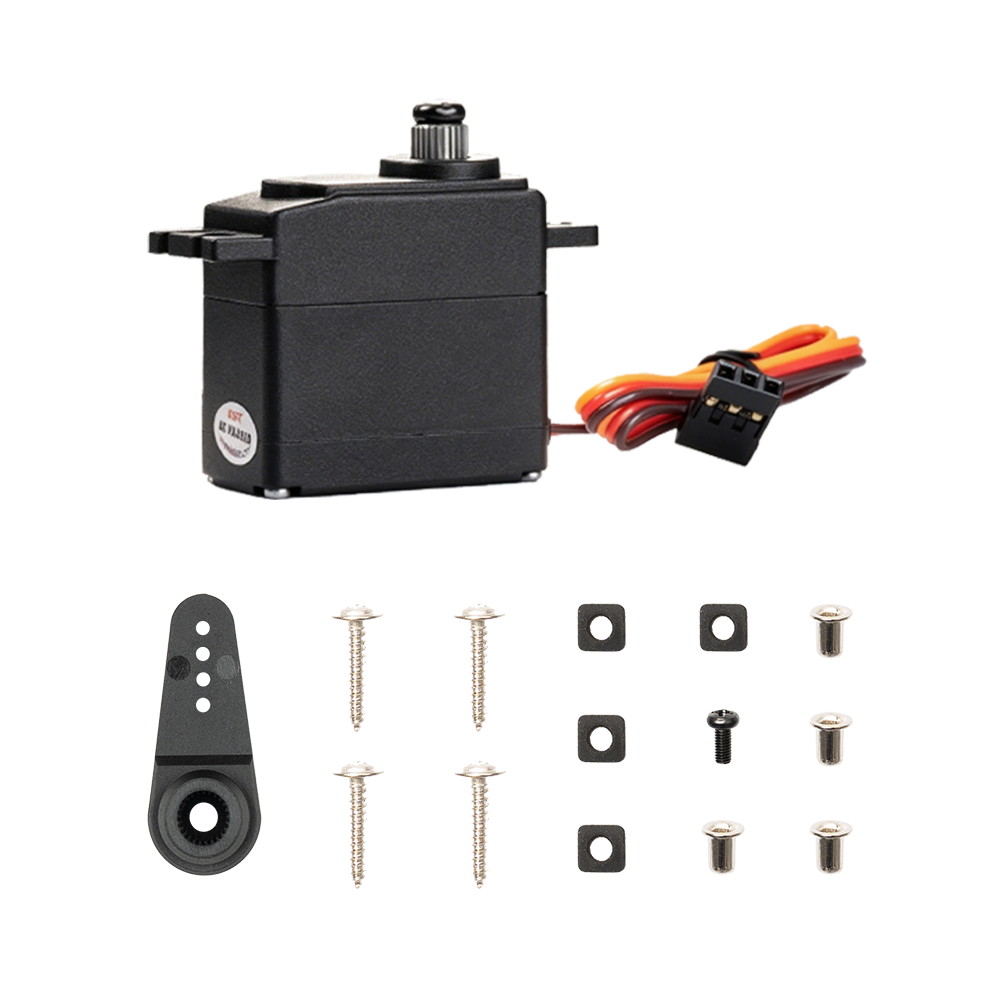

Package Includes

1 * CM712 Servo
1 * Plastic Servo Horn
1 * Servo Horn Screw
4 * Mounting Screw
4 * Rubber Grommet
4 * Eyelet

Download

Technical Specification of CM712 HV Servo
