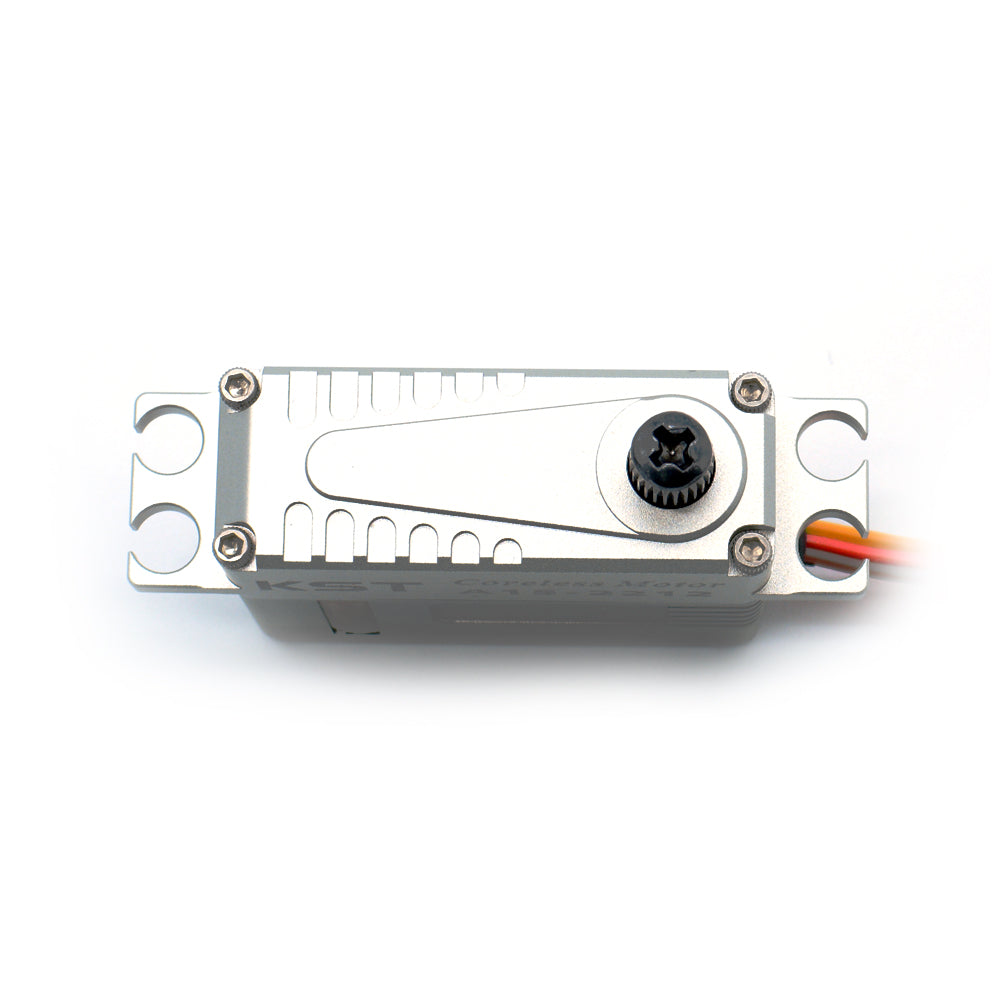

A15-2212 HV Phosphor Bronze & Hardened Steel Gear Servo 25Kgf.cm 0.11sec/60° for RC Airplanes

Regular price$84.99
/

  • Free shipping in standard shipping way when order over $100.
  • For non-pre-sale products, KST Servos processes orders within 5 working days of placement.
  • In the case of out-of-stock items, we will inform you via email as soon as the lead time is determined.

The KST A15-2212 has a thin thickness of 15mm with extremely high positioning force and good positioning time. It can be loaded up to 25Kgf.cm. The digital servo has precise, backlash-free carbide and phosphor bronze gearing and a high level of reset accuracy. The high-quality all-aluminum housing can be mounted precisely and ensures good heat dissipation.

A15-2212 HV Phosphor Bronze & Hardened Steel Gear Servo 25kg.cm 0.11sec/60° for RC Airplanes

Features

  • Standard Servos
  • Phosphor Bronze & Hardened Steel Gear
  • Extreme torque and Excellent speed
  • CNC aluminum case
  • Programmable

Specification

  • Item: A15-2212 HV Digital Servos
  • Rated Voltage DC7.4V
  • Voltage Range DC3.8V-8.4V
  • Torque: 18Kgf.cm@6.0V, 22Kgf.cm@7.4V, 25Kgf.cm@8.4V
  • Speed: 0.15sec/60°@6.0V, 0.12sec/60°@7.4V, 0.11sec/60°@8.4V

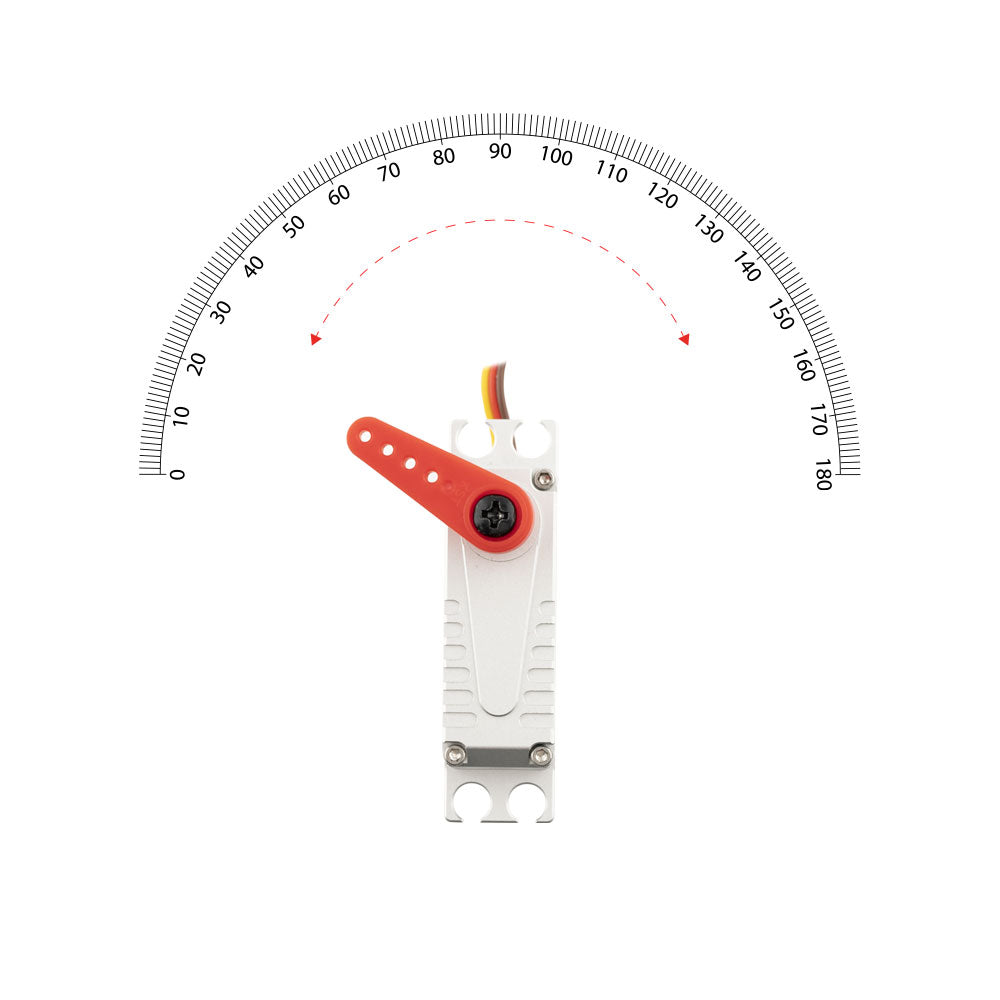

  • Default Travel Angle: ±50° = 100° Total
  • Operating Temperature Range: -10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material Phosphor: Bronze & Hardened Steel
  • Position Sensor Potentiometer
  • Ball Bearing 2BB
  • Case Dimensions 40.5mm*15mm*34.1mm±0.2mm
  • Weight 50g±10%
  • Shielded Connecting Cable: 22AWG

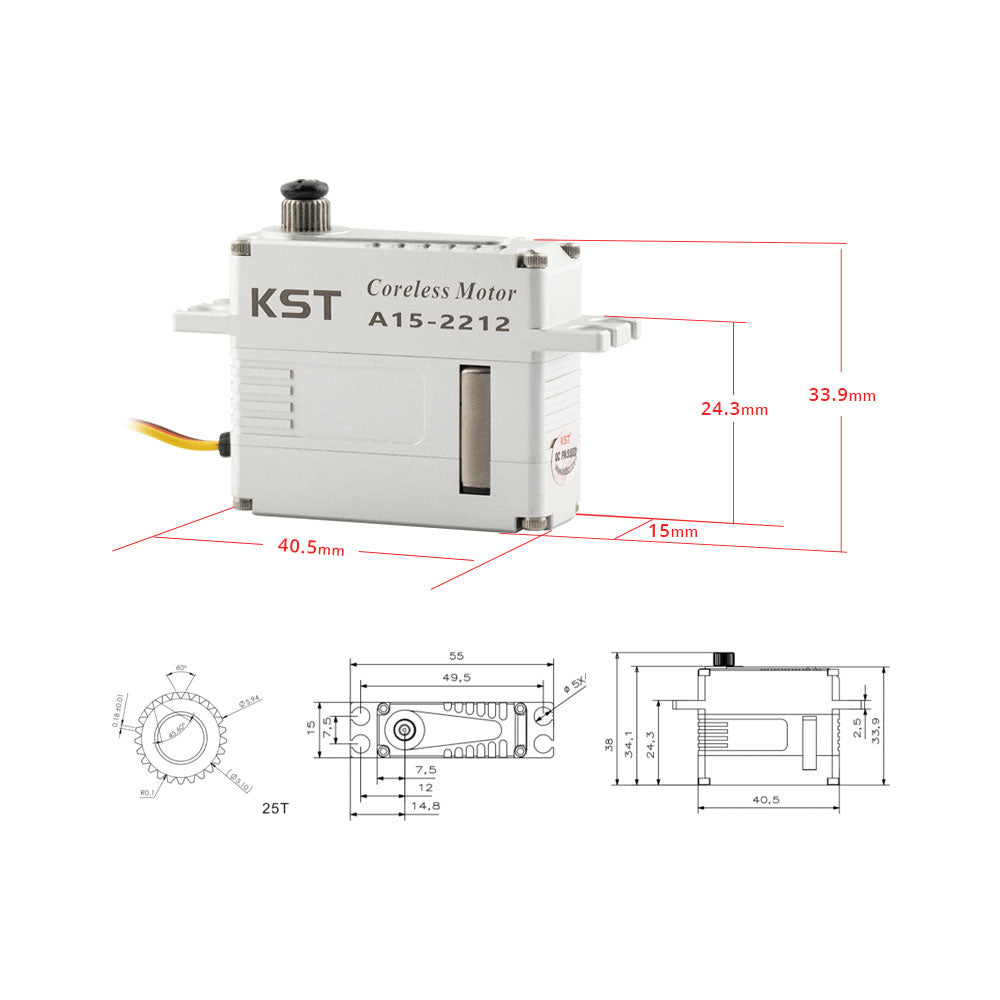

Size

A15-2212 HV Phosphor Bronze & Hardened Steel Gear Servo 25kg.cm 0.11sec/60° for RC Airplanes

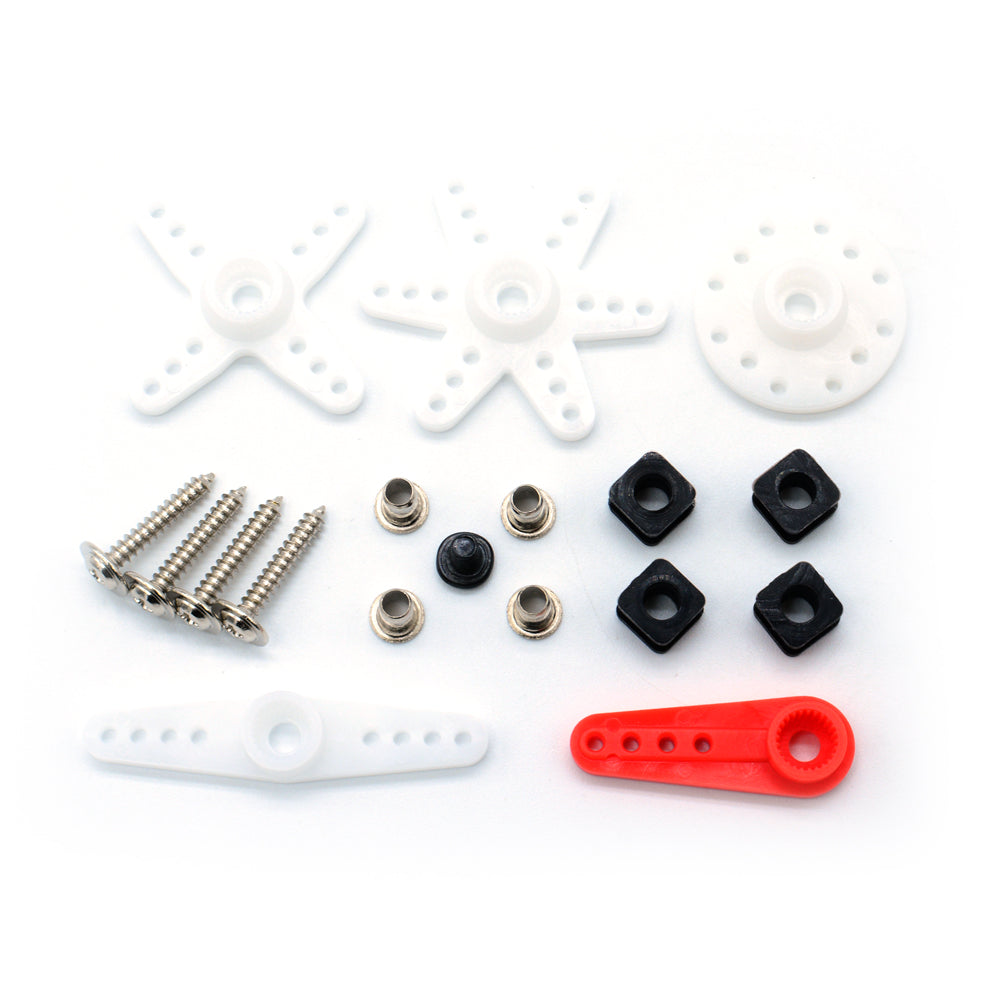

Package Includes

  • 1 * A15-2212 HV Digital Servos
  • 5 * Plastic Servo Horn
  • 1 * Servo Horn Screw
  • 4 * Mounting Screw
  • 4 * Rubber Grommet
  • 4 * Eyelet

A15-2212 Servo
