BLS905X Brushless Tail Servo 8Kgf.cm 0.035sec/60° for 550-700 Helicopters

Regular price$94.99
/

  • Free shipping in standard shipping way when order over $100.
  • For non-pre-sale products, KST Servos processes orders within 5 working days of placement.
  • In the case of out-of-stock items, we will inform you via email as soon as the lead time is determined.

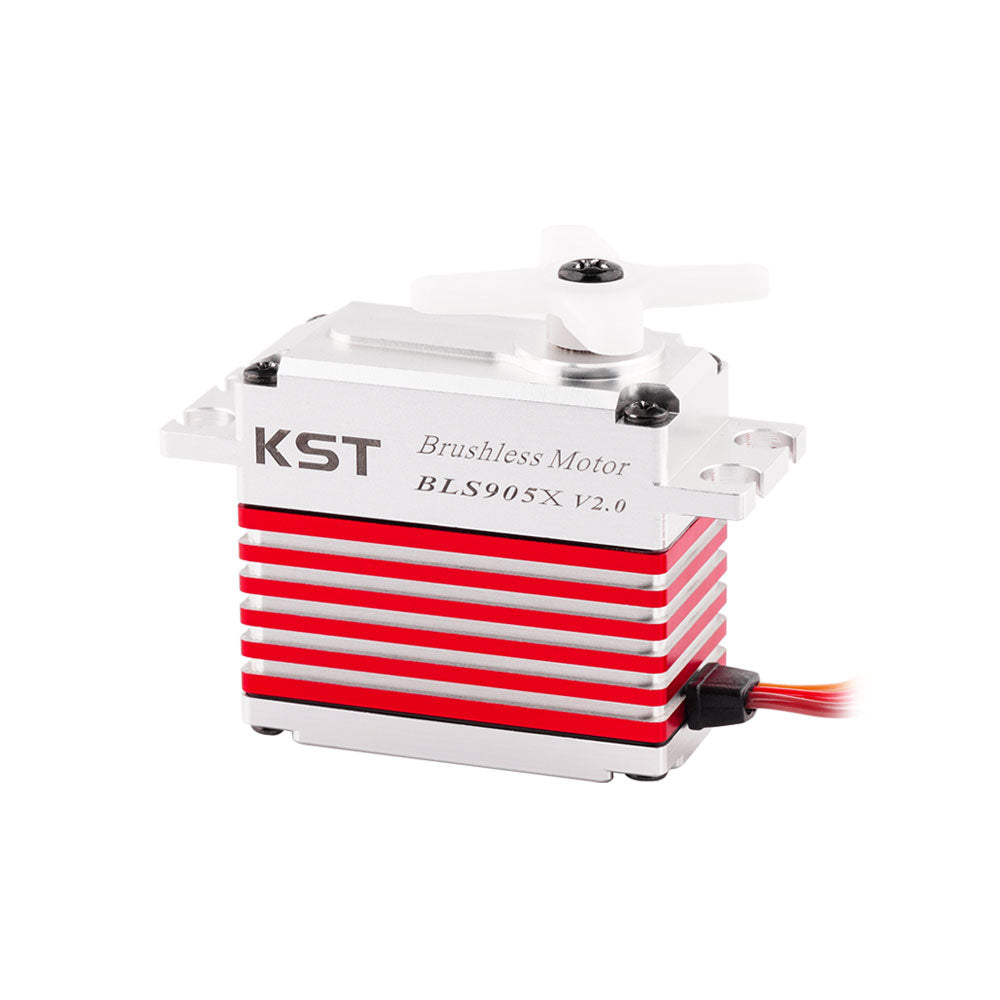

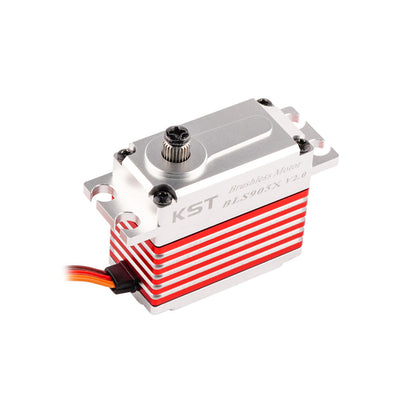

BLS905X is a top helicopter tail servo for 3D aerobatics. It is extremely solid due to the aluminium housing and the solid metal gear.

The servo KST BLS905X has the following advantages compared with the BLS805X: The brushless motor and the electronics are more powerful. Because of these facts and in connection with high quality ball bearings the BLS905X is a class higher than the BLS805X.

Due to this performance and the high positioning speed, the KST BLS905X HV is perfect for advanced 3D helicopter pilots.

BLS905X Brushless Tail Servo 8kg.cm 0.035sec/60° for 550-700 Helicopters

Video

Features

  • Hardened Steel Gears
  • Extreme torque and Excellent speed
  • CNC aluminium case
  • Brushless DC Motor
  • Two Ball Bearings

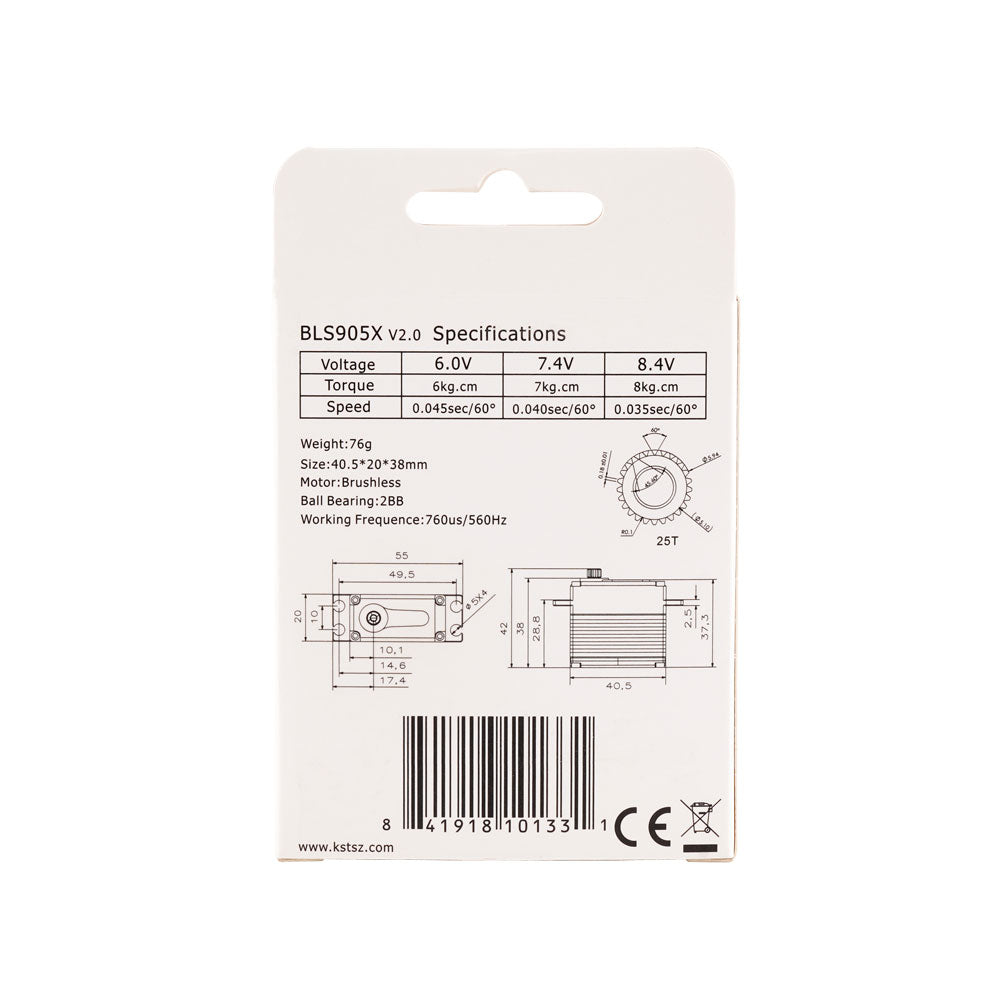

Specification

  • Item: BLS905X Brushless Tail Servo
  • Operating Voltage: DC6.0V-8.4V
  • Size: 40.50*20*37mm
  • Torque: 8Kgf.cm@8.4V / 7Kgf.cm@7.4V /  6Kgf.cm @6.0V
  • Speed: 0.035sec/60°@8.4V,  0.040sec/60°@7.4V,  0.045sec/60°@6.0V
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃……+65℃
  • Case Material: Aluminum Alloy
  • Motor Type: Brushless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer

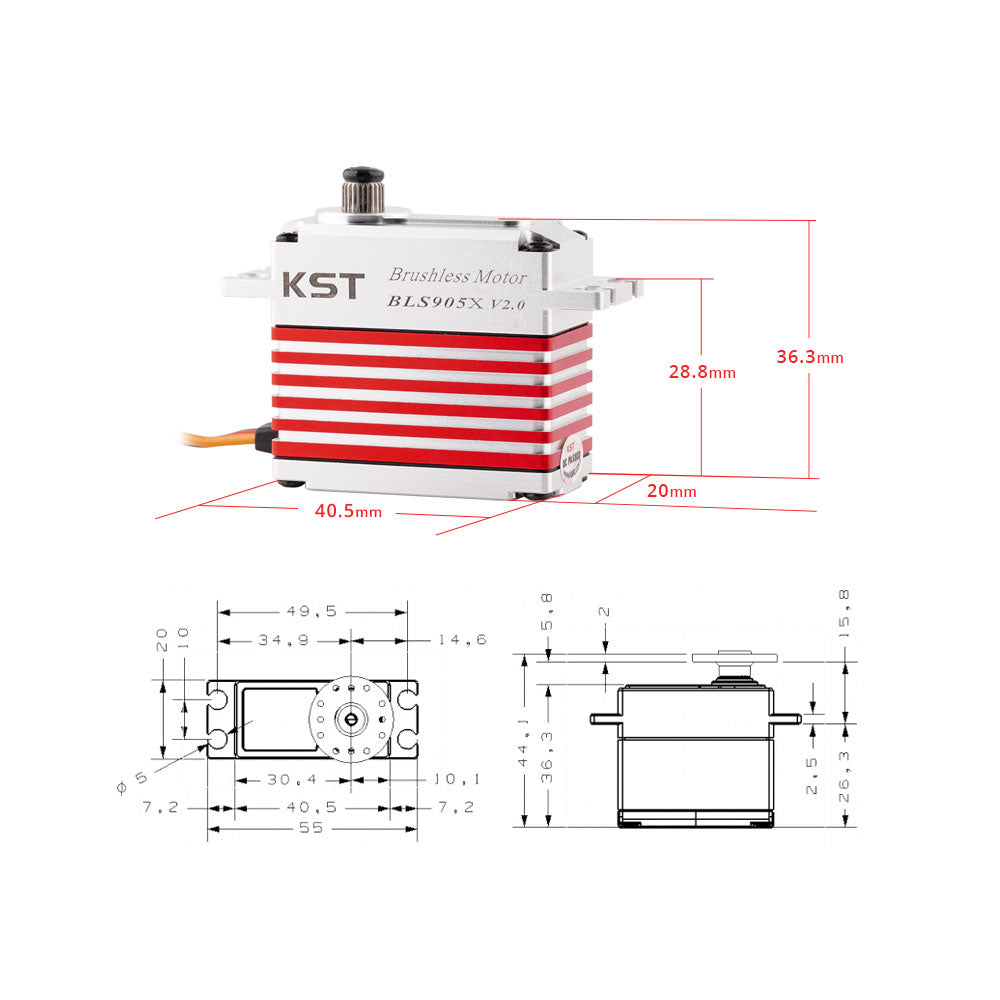

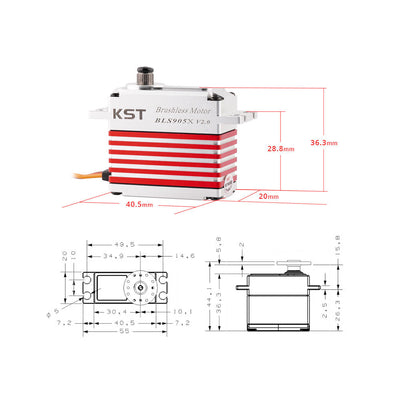

  • Case Dimensions: 40.5mm*20mm*38mm±0.2mm
  • Weight: 70g±10%
  • Ball Bearing: 2 BB

Related Products

Size

BLS905X Brushless Tail Servo 8kg.cm 0.035sec/60° for 550-700 Helicopters

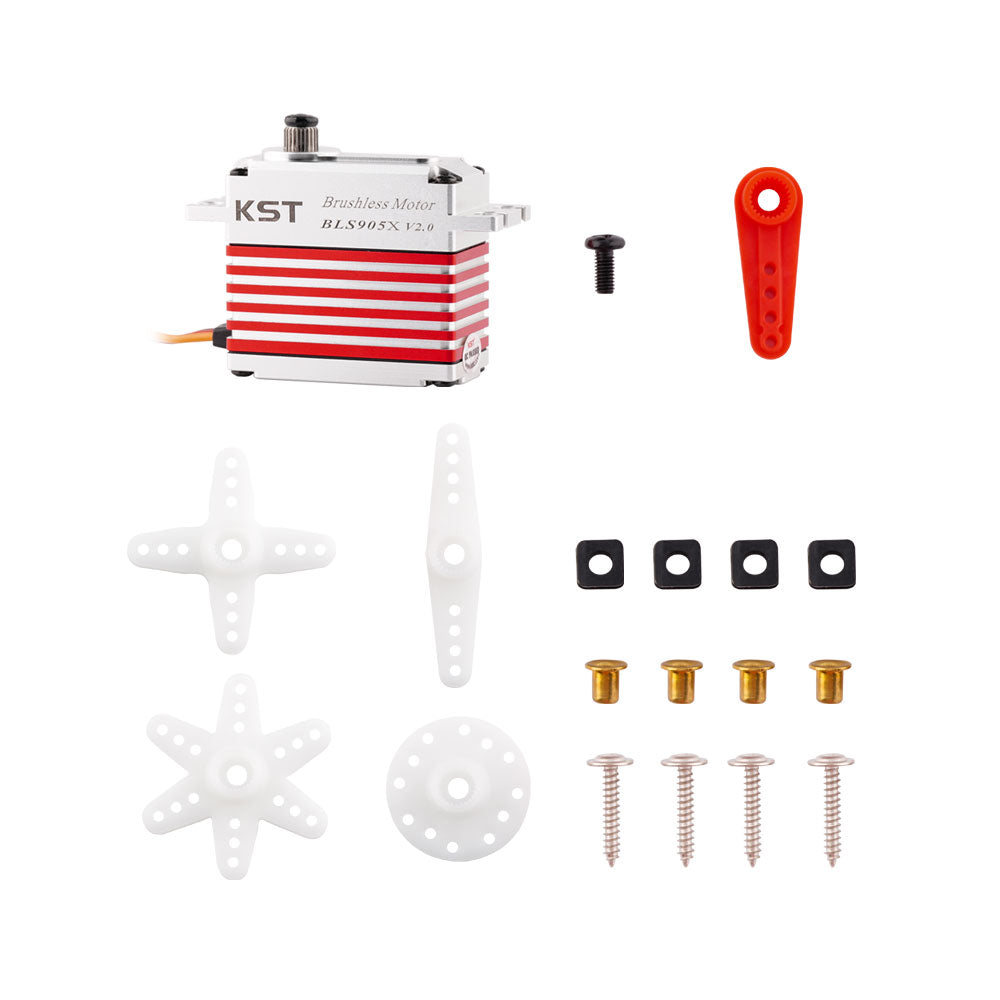

Package Including

  • 1 * BLS905X Brushless Servo
  • 1 Pack of Accessories
BLS905X Brushless Tail Servo 8kg.cm 0.035sec/60° for 550-700 Helicopters
