X06N V6.0 HV Micro Digital Metal Gear Micro Servo 1.8Kgf.cm 0.07sec for RC Gliders

Regular price$39.99
/

  • Free shipping in standard shipping way when order over $100.
  • For non-pre-sale products, KST Servos processes orders within 5 working days of placement.
  • In the case of out-of-stock items, we will inform you via email as soon as the lead time is determined.

X06N V6.0 servo is without mounting tabs. Perfect for installations where the servos are glued to the model.

KST delivers once again with the X06 series competition servos for glider pilots and soaring enthusiasts who demand the best! The all new X06 are super compact and ideal for F3K and F5K gliders. Featuring a slim 7mm wide casing crafted from 6061 Alloy and sporting the famous KST red midsection not only do these servos look fantastic but they also offer the competition winning performance you would expect from KST.

Note: This servo is out of stock now and will be available again in early July.

X06/X06H/X06N Servo

Features

  • Compact and Lightweight Design
  • Excellent Torque and Speed
  • Designed for High Performance RC Gliders
  • Excellent Heat Dissipation
  • Ultra-slim 7mm Body

Specification

  • Item: X06N HV Micro Servo
  • Rated Voltage: DC3.8V-8.4V
  • Voltage Range: DC6.0V
  • Stall Torque: 0.8Kgf.cm@3.8V, 1.5Kgf.cm@6.0V, 1.8Kgf.cm@8.4V
  • Rated Torque: 4N.cm @ 6.0V
  • Stalling Current: 0.58A @ 6.0V
  • Rated Current: 0.22A @ 6.0V
  • No-load Speed: 0.12sec/60°@3.8V, 0.08sec/60°@6.0V, 0.07sec/60°@8.4V
  • Rated Speed: 0.20sec/60° @ 6.0V
  • Default Travel Angle: ±60° = 120° total travel
  • Operating Temperature Range: -10℃……+65℃

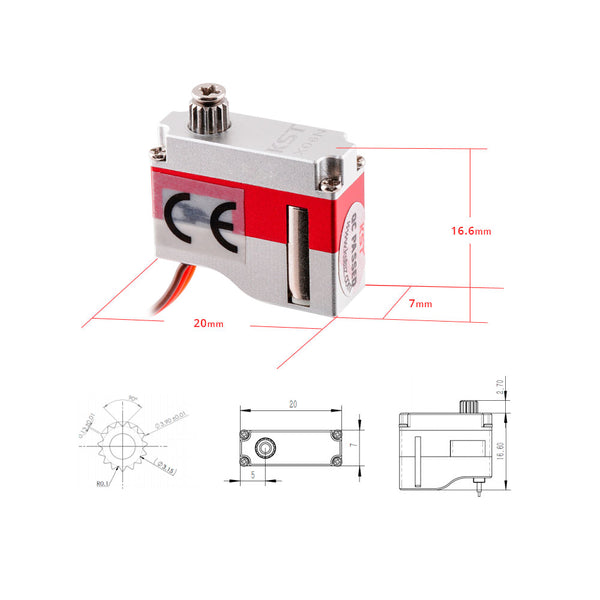

  • Case Dimensions: 20mm*7mm*16.6mm±0.2mm
  • Weight: 6g±10%
  • Motor: Coreless motor
  • Ball Bearing: 1BB

Related Products

Size

X06N V6.0 Servo

Package Including

  • 1 * X06N Micro Servo
  • 4 * Plastic Servo Horn
  • 1 * Servo Horn Screw
  • 4 * Mounting Screw
X06N V6.0 HV Micro Digital Metal Gear Servo 1.8kg.cm 0.07sec for RC Gliders
