MS1035 7.4V MG Digital High Speed Servo 12kg.cm 0.035sec for 550-700 Class Helis

Regular price$159.99
/

  • Free shipping in standard shipping way when order over $100.
  • For non-pre-sale products, KST Servos processes orders within 5 working days of placement.
  • In the case of out-of-stock items, we will inform you via email as soon as the lead time is determined.

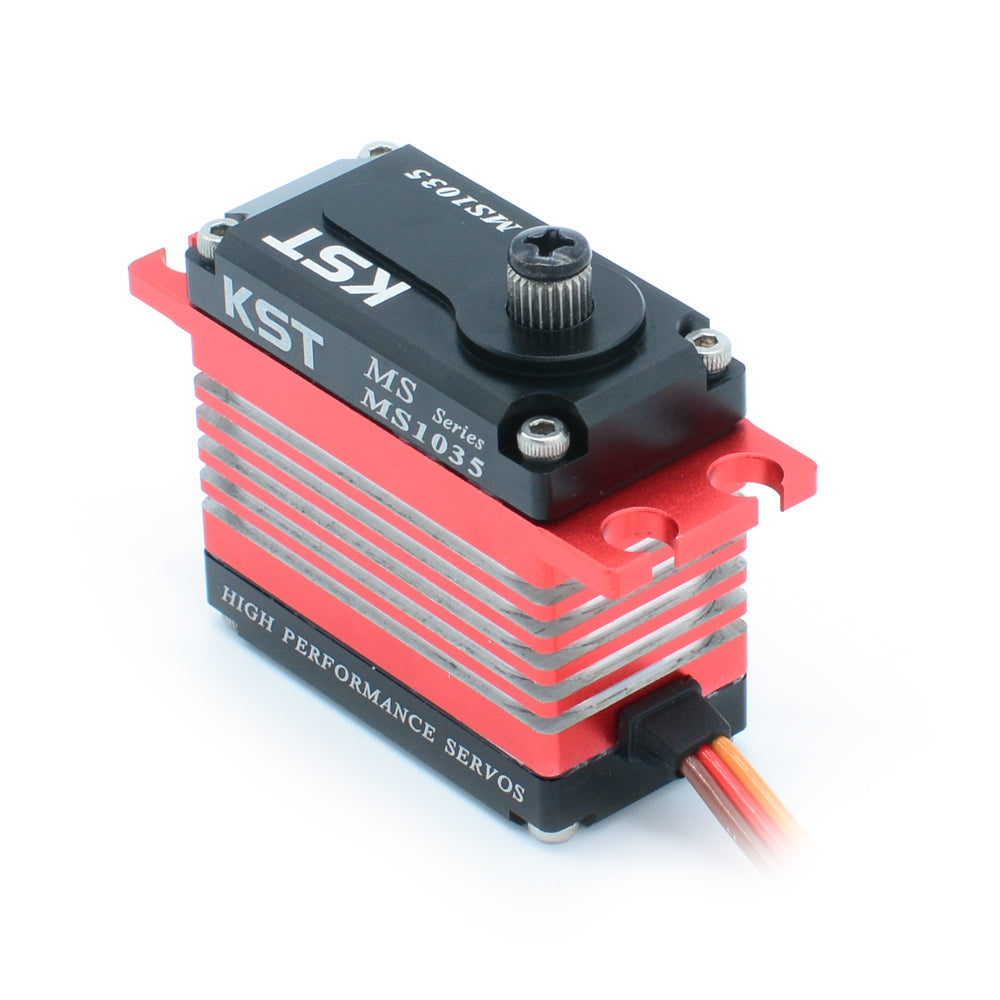

MS1035 is a high performance servo for the 3D helicopter aerobatics. Due to the aluminium housing and the solid metal gear the KST MS1035 is absolutely solid. Small milled cooling fins help to eliminate the heat, when the servo is extremely loaded.

The servo is equipped with a high quality brushless motor, which is perfect for permanent load, as it might happen during an extreme 3D-flight. Due to its extremely high positioning speed in connection with an excellent torque, the KST MS1035 is perfect for the 3D aerobatics.

Compared with the previous servos of the KST X20-series, the KST MS-series has less wear and a better setting back to initial position because of the new "magnetic sensor".

This servo is perfect for 700-class helicopters.

Features

  • Extreme Torque and Excellent Speed
  • CNC Aluminium Case
  • Two Ball Bearings
  • Solid Metal Gear

Specification

  • Item: MS1035 MG Digital Servo
  • Operation Voltage: DC6.0V- 8.4V
  • Torque: 8.5Kg.cm @ 6.0V
    10.5Kg.cm @ 7.4V
    12Kg.cm @ 8.4V
  • Speed: 0.04sec/60°@6.0V
    0.035sec/60° @ 7.4V
    0.03sec/60° @ 8.4V
  • Size: 40.5*20*38mm
  • Working Frequency: 760us/560Hz
  • Weight: 68g
  • Motor: Brushless
  • Position Sensor: Contactless
  • Ball Bearing: 2BB
  • Material : Alu 7075 top case, Alu 6061 middle and bottom case
  • Fit for 550-700 class helicopter tail, narrow band

Size

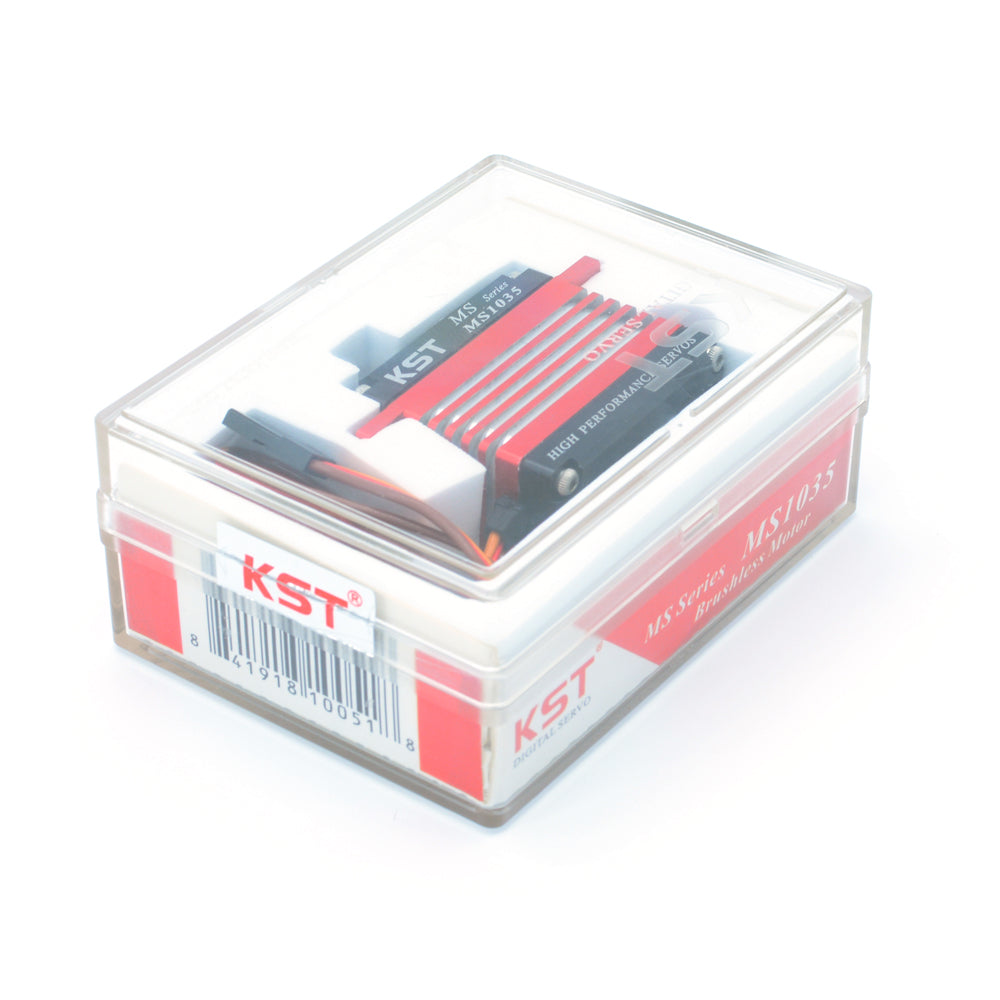

Package Including

  • 1 * MS1035 Digital Servo

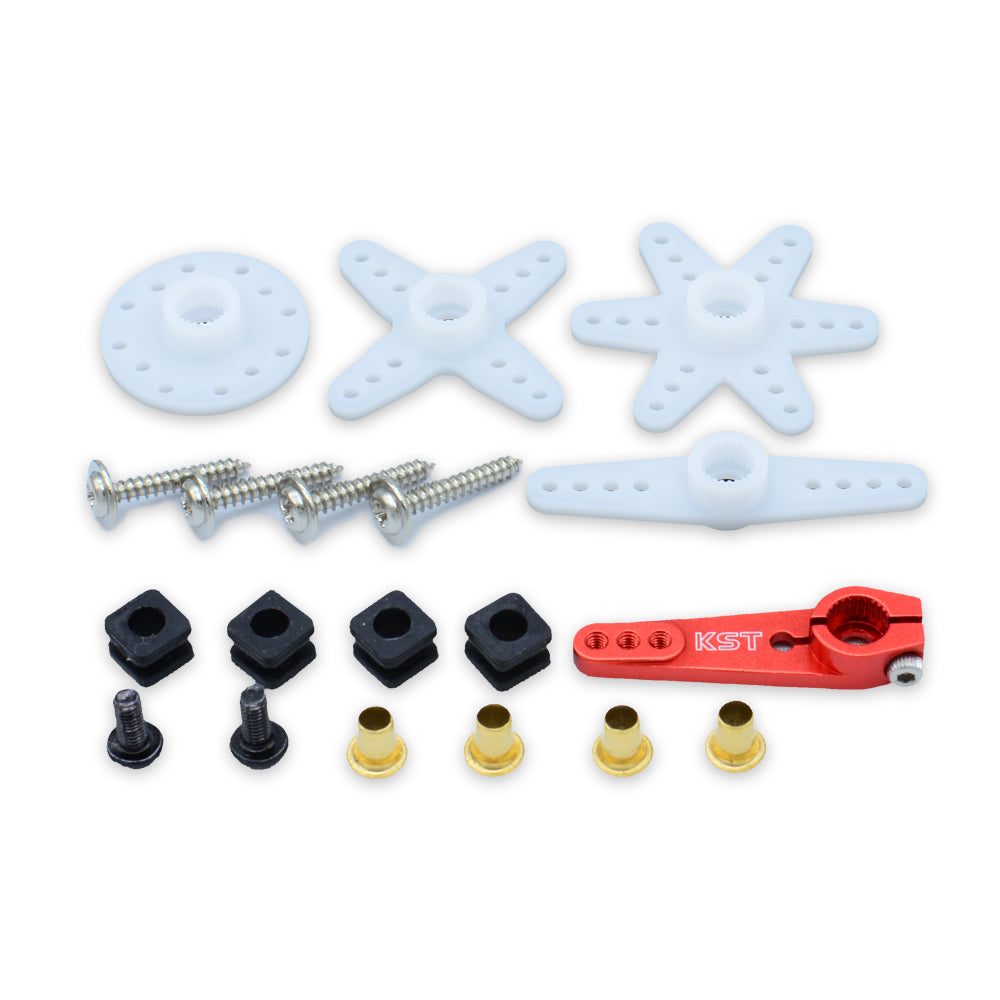

  • 1 * Accessories
